Step 01 — Track Configuration

Select Mounting Type

Choose the installation method that suits your space. Each track is cut and priced per millimetre.

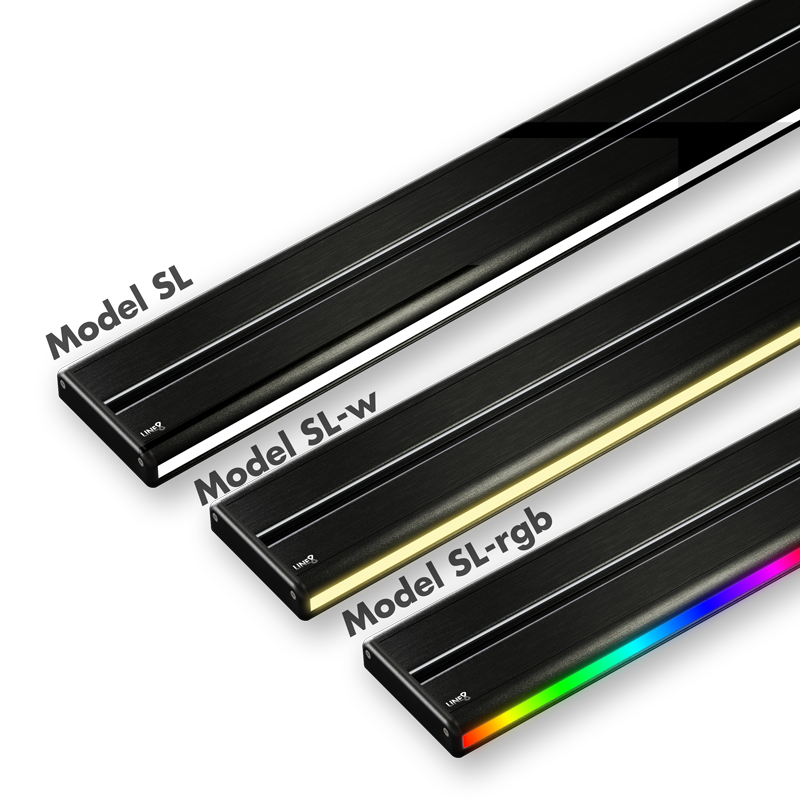

Model SL

Surface Light Track

Mounts directly to wall, stone, or glass. Surface mounted, sits 25mm proud. Simple to install and access.

$0.279 / mm

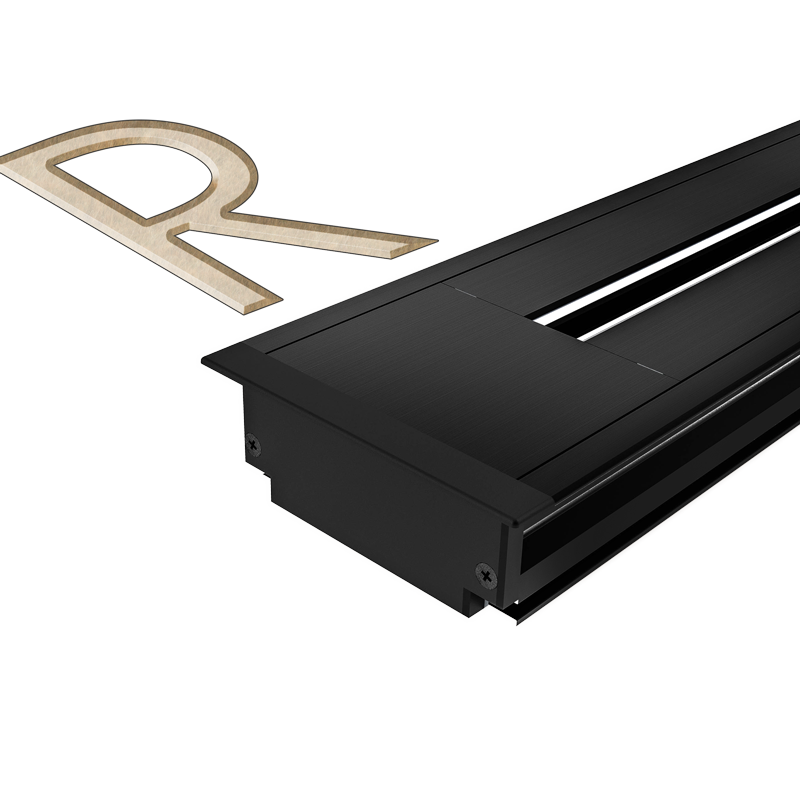

Model R

Recess Power Track

Sits into a precut channel. Only the front face is visible — a clean, built-in look.

$0.279 / mm

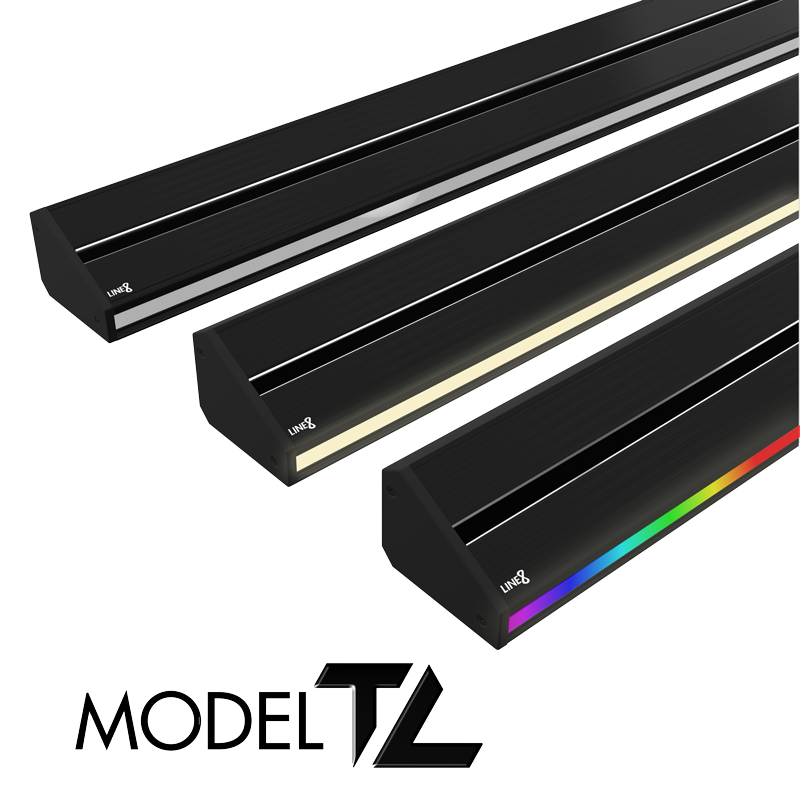

Model TL

Triangle Light Track

Perfect for desktops or corner mounting. Available in two angles for versatile placement.

$0.310 / mm

Step 02 — Integrated Lighting

Select Lighting Option

Model SL and TL offer built-in LED lighting options. Model R does not support integrated lighting.

ℹ️

Model R — Integrated Lighting Not Available

The recessed Model R does not support integrated lighting. The options below are disabled. You can proceed to the next step.

No Lighting

Included in base price

The base SL / TL model offers full flexibility with a built-in accessory rail system — attach hooks, bars, or peg boards to keep your space organized. Features Line8's patented power track system, enabling you to easily add, remove, and reposition sockets anywhere along the track. Supports up to 14 sockets per metre.

4000K White LED

$0.04469 / mm · min $26.81

The SL-w / TL-w model combines practical organisation with elegant lighting. Features integrated 4000K LED ambient lighting delivering soft, natural illumination with smooth fade-in/fade-out transitions. A simple tap toggles the light on or off, with stepless dimming for precision brightness control. Equipped with Line8's innovative power track system for effortless socket repositioning.

Min. track length 600mm · Max. 2400mm. Tracks shorter than 600mm charged at 600mm rate.

RGBCCT Smart LED

$0.18312 / mm · min $109.87

The SL-rgb / TL-rgb model is the ultimate in smart home innovation. Features advanced RGBCCT LED lighting adjustable from 3000K to 6500K, with 16.7 million colour options. Powered by a Tuya Smart controller — control via WiFi remote, smartphone apps, and voice commands through Google Home or Alexa. Integrate with Line8's patented power track for full socket flexibility.

Min. track length 600mm · Max. 2400mm. Tracks shorter than 600mm charged at 600mm rate.

Step 03 — Aesthetics

Select Surface Finish

All finishes are hand-applied in Singapore. Black Hairline is the standard finish included in the base price. Premium finishes add $0.054/mm.

Step 04 — Sizing

Specify Track Length

Track is cut and priced per millimetre. Enter the length of the power track section only — blank sections are added separately in the next step.

mm

—

Indicative Track Pricing & Socket Capacity

Length	Black Track (SL)	Colour Track (SL)	Sockets (Power)	Socket Visual

Step 05 — Add-Ons & Accessories

Customise Your Track

Configure blanks to seal off sections, add corner caps to turn corners, and select any accessory modules. All of these are optional — if you just want a basic straight power track, use the skip button.

Nothing to add? Hit Skip.

Track Blanks

Seal off sections over a sink, stove, or anywhere a clean surface matters more than a socket. Leave empty if not needed.

Blank length is in addition to your power track length. For example: a 2400mm total run with a 900mm blank over a hob = 1500mm power track + 900mm blank.

Position matters: If the blank is at one end of the track, no extra terminal is needed. If it is in the middle, the power track core must be split into two pieces — this requires an additional End Terminal ($35.97) and Dummy End Terminal ($8.99) which will be added automatically.

Corner Caps

Only needed when two track sections meet at an angle. Leave at 0 for a single straight run.

Do you need corner caps? Not every installation does. If your track is a single straight run, no corner connector is required. Corner connectors are only needed when two separate track sections are joined at an angle. Each cap requires splitting the track, so an additional End Terminal ($35.97) and Dummy End Terminal ($8.99) are included per cap.

Img	Item	Unit Price	Qty

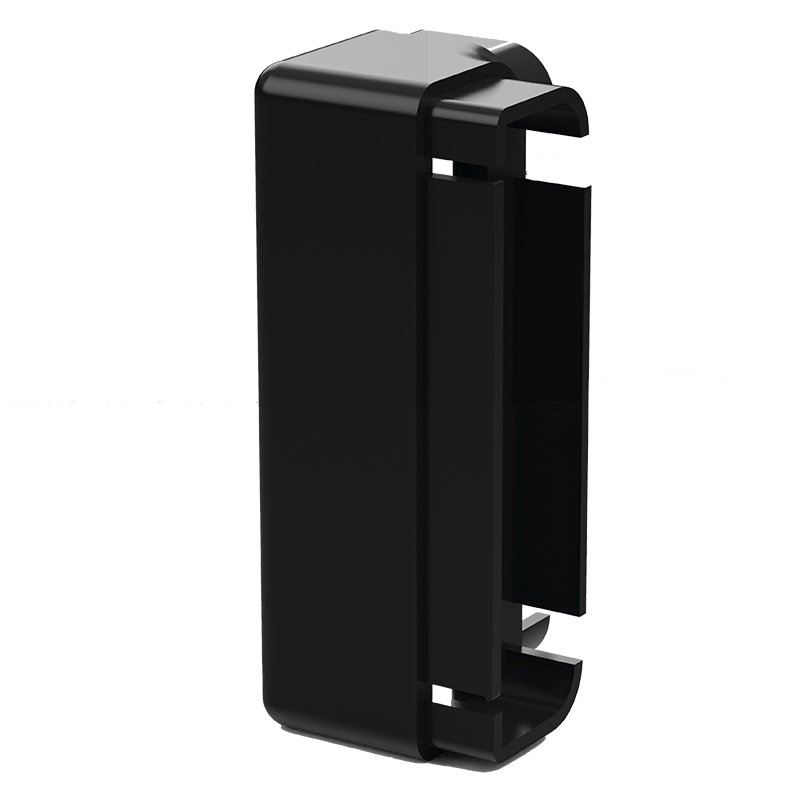

	Internal Corner Cap 90° For inside corners where two walls meet inward. Incl. end terminal + dummy terminal	$88.56	0

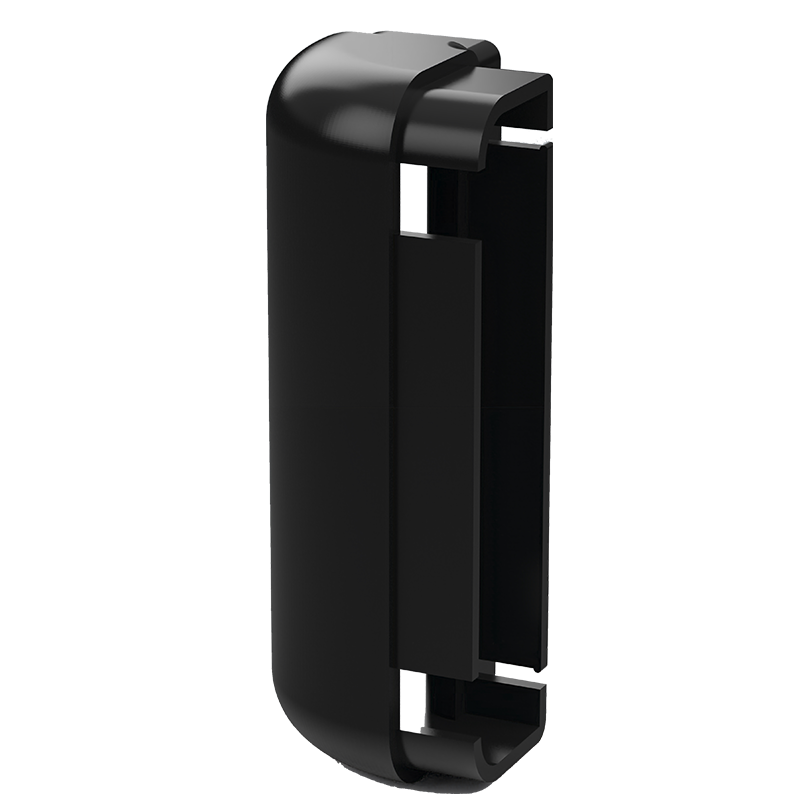

	External Corner Cap 270° For outside corners where a wall edge protrudes outward. Incl. end terminal + dummy terminal	$88.56	0

Accessory Modules

Multimedia and connectivity modules that mount flush alongside your power track core. All optional.

Step 06 — Adaptors

Select Tap-Off Units

Adaptors slide, engage, and can be repositioned at any time. Select your socket type, body colour, and ring finish.

Step 07 — Request Quotation

Configuration Summary

Review your full specification. Complete your details to send to our team for an official quotation.

Configure Your Line8 Power Track System
